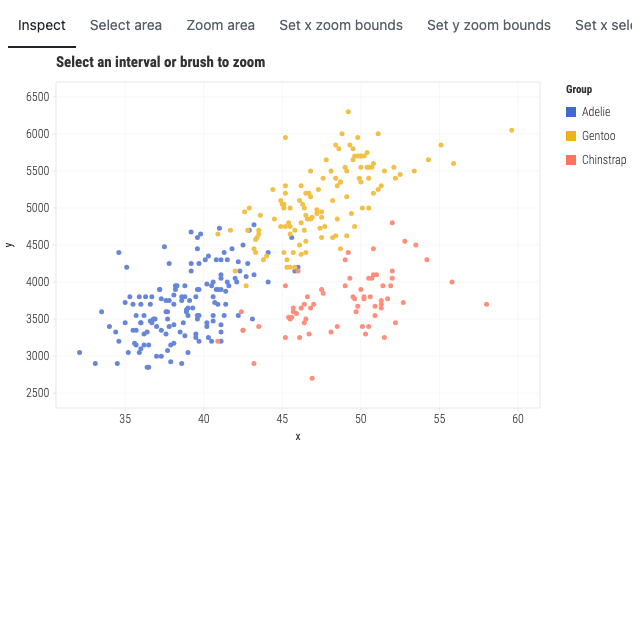

Interval selection and zoom

<script lang="ts">
  import { GeomPoint, GGPlot, Labs, ThemeLight } from "@ggsvelte/svelte";

  import { field } from "./data.js";

  let selectionStatus = $state("Choose Select area and drag a rectangle.");
  let zoomStatus = $state("Choose Zoom area to rescale, then Reset zoom.");
</script>

<!-- Zoom area is deliberately armed from the tool rail; a finished drag inverts the rect
     through the trained scales into explicit continuous domains (an
     intentional respec). prevScales flow through the commit path, so the
     group colors NEVER shift while zooming. Double-click resets. -->
<GGPlot
  data={field}
  aes={{ x: "bill", y: "mass", color: "species" }}
  key="id"
  inspect={true}
  select={{ type: "interval", mode: "xy", persistent: true }}
  zoom={{ mode: "xy" }}
  onselect={(event) => {
    if (event.mode !== "point") {
      selectionStatus =
        event.phase === "clear"
          ? "Selection cleared."
          : `${event.phase}: ${String(event.keys.length)} keyed rows, ${String(event.lineageCount)} marks`;
    }
  }}
  onzoom={(event) => {
    zoomStatus =
      event.phase === "clear"
        ? "Zoom reset."
        : `Zoomed to x ${event.domains?.x?.map((value) => value.toFixed(2)).join("–") ?? "all"}, y ${event.domains?.y?.map((value) => value.toFixed(2)).join("–") ?? "all"}.`;
  }}
  width="container"
  height={400}
>
  <ThemeLight />
  <Labs title="Select an interval or brush to zoom" x="x" y="y" color="Group" />
  <GeomPoint size={2.5} alpha={0.8} />
</GGPlot>

<!-- Visual callback evidence only. GGPlot owns the single concise live region. -->
<div class="event-status gg-demo-chrome">
  <p><strong>Selection:</strong> {selectionStatus}</p>
  <p><strong>Zoom:</strong> {zoomStatus}</p>
</div>

<style>
  .event-status {
    max-width: 640px;
    margin-top: 0.6rem;
    color: var(--muted, #59636e);
    font: 0.82rem/1.4 var(--gg-font-family, system-ui, sans-serif);
  }

  .event-status p {
    margin: 0.15rem 0;
  }
</style>
